Best High Frequency Induction Heating Equipment
Nowadays, there are so many products of high frequency induction heating equipment in the market and you are wondering to choose a best one. You have searched for high frequency induction heating equipment in many merchants, compared about products prices & reviews before deciding to buy them.
You are in RIGHT PLACE.
Here are some of best sellings high frequency induction heating equipment which we would like to recommend with high customer review ratings to guide you on quality & popularity of each items.

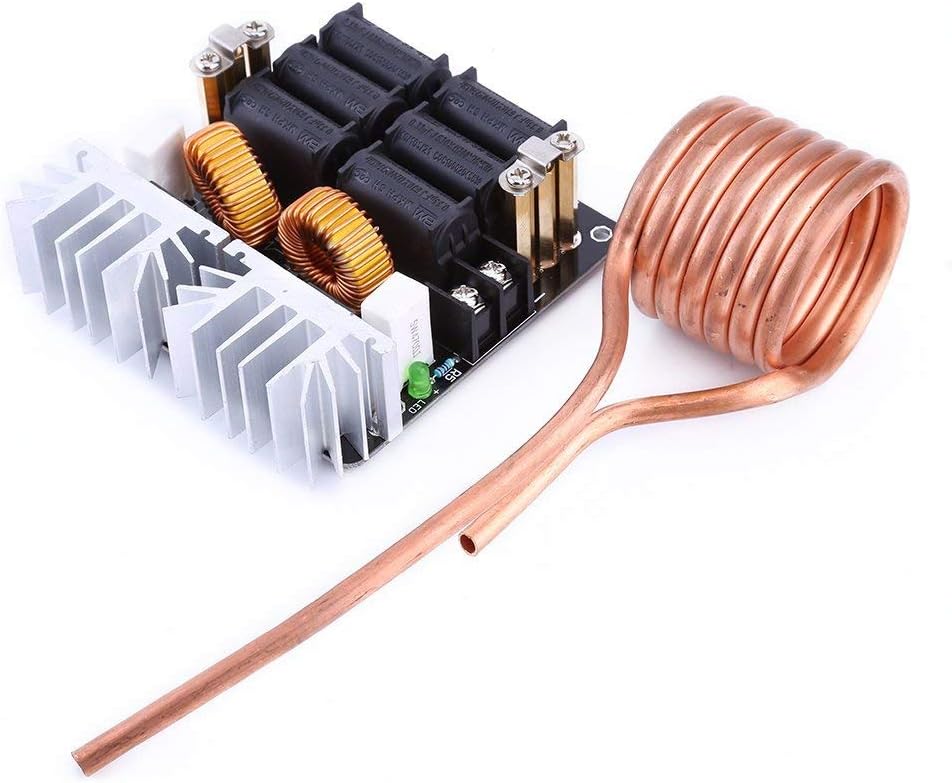

WINGONEER low ZVS 12-48V 20A 1000W High Frequency Induction Heating Machine Module
- This section of induction heating using low-voltage DC power supply 12-48V
- Maximum current 20A, maximum power 1000W.
- Tested 53V power supply when working properly.
- Because of its moderate power, can be used for small parts DIY players do hardening, annealing and other heat treatment.
- Also can be used with a graphite crucible melting gold, silver, copper, aluminum and other metals, uniform heating fast, very convenient.
WINGONEER trademark Reg.NO:4747611
WINGONEER low ZVS 12-48V 20A 1000W High Frequency Induction Heating Machine Module
Feature:
Inside diameter of the coil: 40mm
Height of the coil: 50mm
24V input with no load current of 3A
48V input with no load current of 6A
The higher the voltage, the greater the heating current when the same thing, the effect is better,
But at the same time heat is also large, so to eradicate the actual situation to select the input voltage, the general use of the words 24V or 36V power supply is enough.
It suits 12-36V power supply (not included)
The coil accept 40mm crucible.
Note:
1. The kit contains a full set of driving circuit elements and brass
2. Buyers need to bring their own power and cooling unit.
3. The circuit board using double-sided fiberglass board, mainly copper traces are used to widen use the entire back surface of the resonant circuit common, continuous work, please add a fan to blow down from above, to the resonance capacitors and other components cool.
This circuit can not only do the induction heating, the copper tube into the high-frequency transformer, is a powerful inverter.
1.To increase the heat sink using a customized substrate as thick as 8.5mm!
Cooling capacity is very powerful.
2. Using the M4 pillars, fever smaller, more efficient.
Package includes:
1 x ZVS Low Voltage Induction Heating Board
1 x Brass
220V 15KW 30-100 KHz High Frequency Induction Heater Furnace 2200 ℃ (3992 ℉)
- steel
- Adopts the latest MOSPET, IGBT power units and frequency conversion control techniques with high efficiency, low energy consumption and higher output power
- With constant current and constant power control function to greatly optimize the heating process of metals, realize efficient and fast heating, and fully exert the superiority of the products
- Power consumption is half of traditional electron tube high frequency induction heating equipments under same conditions
- With 100% load design, can work in 24 hours without stop. Infrared temperature detector can be equipped to realize the automatic control of temperature, improve heating quality and simplify manual operation
- With heating-insulating-cooling three stages function setting, the heating and insulating time required can be get to accommodate to the batched and repeated heating situations
- With multiple status display of overflow, overvoltage, low water, phase failure and load malfunction, providing higher reliability and sustainability
- Select power supply according to the power and frequency. The higher the frequency, the shallower the heating depth, and the lower the frequency, the better the diathermancy
Application:
Do heat treatment for gear wheel and axis
Continuous annealing for steel wire
Heating and hot press molding for dishware
Forging & molding for standard work-piece
Attention:
1. To use this machine smoothly, please read the manual carefully
2. This machine can’t be used with a plug directly, it needs a wire to connect the machine to power line directly.(the cross-sectional area of power line must be larger than 6 square millimeters.)
Specifications:
Output power: 15 KW
Output current: 200 – 600 A
Fluctuating frequency: 30 – 100 KHZ
Heating time: 1-99 s (auto)
Input voltage: Single phase 220v
Flow rate of cooling water: 0.06-0.12Mpa, 7.5 L / min
Water temperature protection point: 40 ℃ (104 ℉)
Max. heating temperature: 2200 ℃ (3992 ℉)
Load duration: 100%
Cooling: Water cooling
Package Content:
1 x 15 KW High Frequency Induction Heater Furnace
2 x Heating Coil
1 x Foot Switch
1 x English Manual
Semoic 2500W ZVS Induction Heater High Frequency Induction Heating PCB Board Melted Metal + Coil+ Crucible+Pump
Semoic,a legal trade mark, has been registered. Only those who are authorized are available to sell items under Semoic. Semoic will bring you joyful shopping experience. The power line is fully covered with copper cover design, which can increase the current and heat generation;
Using oversized and large power heat sink to dissipate heat better;
The output terminal uses three M4 copper columns in parallel, which can be connected to other outputs such as high voltage package;
Using six IRFP260 and 12 capacitors in parallel resonance, the power is high and the efficiency is high;
How to use? (Instructions)
For induction heating, it is recommended to use a switching power supply of 48V50A or higher. If the power supply is 24V or more, a power supply of 20A or more is required. The higher the voltage, the larger the current, the higher the heating power, the faster the heating speed.
size:35*13*10cm
Material:Metal + pc
colour:black
Package Contents:
1 * ZVS induction heater
1 * coil
1 * 48V Copper Tube
1 * water pump
1 * crucible
Only the above package content, other products are not included.
Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
VEVOR High Frequency Induction Furnace 15KW High Frequency Induction Heater 30-100 KHz Gold Silver Copper Steel Induction Heater LH-15A for Gold Silver Copper LH-15A(2200℃,3992℉)
- Adopts the latest MOSPET, IGBT power units and frequency conversion control techniques with high efficiency, low energy consumption and higher output power
- With constant current and constant power control function to greatly optimize the heating process of metals, realize efficient and fast heating, and fully exert the superiority of the products
- Power consumption is half of traditional electron tube high frequency induction heating equipments under same conditions
- With heating-insulating-cooling three stages function setting, the heating and insulating time required can be get to accommodate to the batched and repeated heating situations
- With multiple status display of overflow, overvoltage, low water, phase failure and load malfunction, providing higher reliability and sustainability
The 15 KW 30-100 KHz High Frequency Induction Heater Furnace is portable, smaller footprints and high quality.
Application
1. Welding: brazing, silver welding.
2. Heating: hot forging, hot with, smelting.
3. Heat treatment: surface quenching.
4. Annealing: tempering, quenched and tempered.
Attention
1. To use this machine smoothly, please read the manual carefully.
2. This machine can’t be used with a plug directly, it needs a wire to connect the machine to power line directly.(the cross-sectional area of power line must be larger than 6 square millimeters.)
Specifications
Output power: 15 KW
Output current: 200 – 600 A
Fluctuating frequency: 30 – 100 KHZ
Heating time: 1-99 s (auto)
Input voltage: Single phase 110 V, 60 Hz
Flow rate of cooling water: 0.2 Mpa, 2 L / min
Water temp. protection point: 40 ℃ (104 ℉)
Max. heating temperature: 2200 ℃ (3992 ℉)
Load duration: 100%
Cooling: Water cooling
Dimension: 55 x 22 x 47 cm(22 x 9 x 19 inch)
Weight: 18 kg (40 lbs)
Package Content
1 x 15 KW High Frequency Induction Heater Furnace
1 x Heating Coil
1 x Foot Switch
1 x English Manual
Happybuy 15KW 30-100 KHz High Frequency Induction Heater Furnace Melting Furnace System LH-15A Promotion (30-100 KHz High Frequency)
110V 15KW 30-100 KHz High Frequency Induction Heater Furnace 2200 ℃ (3992 ℉)
- steel
- Adopts the latest MOSPET, IGBT power units and frequency conversion control techniques with high efficiency, low energy consumption and higher output power
- With constant current and constant power control function to greatly optimize the heating process of metals, realize efficient and fast heating, and fully exert the superiority of the products
- Power consumption is half of traditional electron tube high frequency induction heating equipments under same conditions
- With 100% load design, can work in 24 hours without stop. Infrared temperature detector can be equipped to realize the automatic control of temperature, improve heating quality and simplify manual operation
- With heating-insulating-cooling three stages function setting, the heating and insulating time required can be get to accommodate to the batched and repeated heating situations
- With multiple status display of overflow, overvoltage, low water, phase failure and load malfunction, providing higher reliability and sustainability
- Select power supply according to the power and frequency. The higher the frequency, the shallower the heating depth, and the lower the frequency, the better the diathermancy
Application:
Do heat treatment for gear wheel and axis
Continuous annealing for steel wire
Heating and hot press molding for dishware
Forging & molding for standard work-piece
Attention:
1. To use this machine smoothly, please read the manual carefully
2. This machine can’t be used with a plug directly, it needs a wire to connect the machine to power line directly.(the cross-sectional area of power line must be larger than 6 square millimeters.)
Specifications:
Output power: 15 KW
Output current: 200 – 600 A
Fluctuating frequency: 30 – 100 KHZ
Heating time: 1-99 s (auto)
Input voltage: Single phase 110V, 60 HZ
Flow rate of cooling water: 0.06-0.12Mpa, 7.5 L / min
Water temperature protection point: 40 ℃ (104 ℉)
Max. heating temperature: 2200 ℃ (3992 ℉)
Load duration: 100%
Cooling: Water cooling
Package Content:
1 x 15 KW High Frequency Induction Heater Furnace
2 x Heating Coil
1 x Foot Switch
1 x English Manual
Other electrical and testing equipment,Low Zvs 12-48V 20A 1000W Low Voltage Induction Heating Board High Frequency Induction Heating Machine Module
- This section of induction heating uses a low DC voltage of 12-48 V.
- The maximum current is 2A, the maximum power is 1W.
- Tested 53 V power supply when working properly.
- Due to its moderate power, can be used for small parts DIY players really tempering, annealing and other heat treatment.
- It can also be used with a graphite crucifix, melting gold, silver, copper, aluminum and other metals, uniform Heating quickly, very convenient.
Features:
This section of induction heating uses a low DC voltage of 12-48 V.
The maximum current is 20A, the maximum power is 1000W.
Tested 53 V power supply when working properly.
Due to its moderate power, can be used for small parts DIY players really tempering, annealing and other heat treatment.
It can also be used with a graphite crucifix, melting gold, silver, copper, aluminum and other metals, uniform Heating quickly, very convenient.
24V input without current load 3A, 48V input without current load 6A.
The higher the voltage, the greater the current heating, when the same, the effect is better.
But at the same time, the heat is also large, to eliminate the real situation, in order to select the input voltage, the general use of the words 24 V or 36 V is sufficient.
The coil takes 40 mm crucifix.
Specifications:
Power supply: 12-48 V
Max. current: 20A
Maximum power: 1000 W
Inside the dia. from reel: 40 mm
Coil height: 50 mm
The size of the board: 11 * 10 * 3.5 cm / 4.33 * 3.94 * 1.4in
Weight of the board: 377 g / 13.32 oz.
Package weight: approx. 520 g / 18.34 oz.
Package includes :
1 * zvs low voltage induction heating board
1 * brass
Notes:
Due to the difference between different monitors, the picture may not reflect the actual color of the item. We guarantee the style is the same as shown in the pictures.
Please allow slight dimension difference due to different manual measurement.
Uqiangbao Low Zvs 12-48V 20A 1000W Low Voltage Induction Heating Board High Frequency Induction Heating Machine Module
- This section of induction heating uses a low DC voltage of 12-48 V.
- The maximum current is 20A, the maximum power is 1000W.
- Tested 53 V power supply when working properly.
- Due to its moderate power, can be used for small parts DIY players really tempering, annealing and other heat treatment.
- It can also be used with a graphite crucifix, melting gold, silver, copper, aluminum and other metals, uniform Heating quickly, very convenient.
Features:
This section of induction heating uses a low DC voltage of 12-48 V.
The maximum current is 20A, the maximum power is 1000W.
Tested 53 V power supply when working properly.
Due to its moderate power, can be used for small parts DIY players really tempering, annealing and other heat treatment.
It can also be used with a graphite crucifix, melting gold, silver, copper, aluminum and other metals, uniform Heating quickly, very convenient.
24V input without current load 3A, 48V input without current load 6A.
The higher the voltage, the greater the current heating, when the same, the effect is better.
But at the same time, the heat is also large, to eliminate the real situation, in order to select the input voltage, the general use of the words 24 V or 36 V is sufficient.
The coil takes 40 mm crucifix.
Specifications:
Power supply: 12-48 V
Max. current: 20A
Maximum power: 1000 W
Inside the dia. from reel: 40 mm
Coil height: 50 mm
The size of the board: 11 * 10 * 3.5 cm / 4.33 * 3.94 * 1.4in
Weight of the board: 377 g / 13.32 oz.
Package weight: approx. 520 g / 18.34 oz.
Package includes :
1 * zvs low voltage induction heating board
1 * brass
Notes:
Due to the difference between different monitors, the picture may not reflect the actual color of the item. We guarantee the style is the same as shown in the pictures.
Please allow slight dimension difference due to different manual measurement.
Noblik 1800W ZVS Induction Heating Board Module Flyback Driver Heater+Tesla coil+fan
- The minimum input voltage of the module is 12V, it doesn’t mean all the 12V power supply can be used, some novice buyers may use a smaller power supply. This module has specific voltage and current requirements, the voltage 12V current must be more than 10A power supply can be used, if the power is too low will lead to the power output is greatly reduced, when the voltage is lower than 12V, it will lead to two MOS at the same time conduction, will burn MOS tube
- Note: The power of heating is very large, except that the plate and components are hot, and the heat of copper tube is very high. The buyer can prepare water cooling system separately, can buy a small water pump and 2 meters of inner diameter of 4mm rubber hose.You must pay attention to when using switch power supply, because the high-power switching power supply usually have soft start function, namely the output voltage is slowly rising,
- (package does not inclues)Although this drive plate can withstand more than 40A current, but it is recommended that not exceed 48V 35A to prevent accidents and damage.Package comes with heating circle diameter is 60 mm, design voltage is 36V, if you use more than 40 voltage power supply shall be used for inner diameter 70 mm above diameter heating ring, water pump use 12V dc power supply, please use separate power supply voltage regulator module to avoid burn out fan and water pump.
- and if the voltage rise to 10V before connected induction heating circuit will be caused by lacking voltage lead to circuit can’t afford to vibrate, so that the two MOS tube conduction and burned components at the same time, so be sure to switch the power supply voltage stability and then access the induction heating circuit.When heating the metal objects do not to heat too large metal, otherwise it may be overloaded with power, please add a 35A fuse or ammeter and air switch will be better.
- If you find that the MOS tube fever, then the first thing to consider whether the power output meets the requirements.Do not empty the board, otherwise it will issue a very high frequency of noise, and then MOS tube will burn outInduction heating is recommended to use 36V 20A power supply, 12V power supply is too small heating almost no response, and 12V power supply easily lead to the power supply output voltage decreases, below 12V is very dangerous
The Noblik brand is only authorized to sell Noblik branded goods. Buying goods from Noblik gives you a great shopping experience. 1800W ZVS Induction Heating Board Module Flyback Driver Heater+Tesla coil+fan
Note: Induction heating power is great, so fever is normal, be sure to do a good job of cooling.
Induction heating, the power recommended more than 48V 50A switching power supply. More than 24V power supply, then more than 20A power supply, the greater the voltage, the greater the current, the greater the heating power, heating faster.
This products maximum power 1800W, adopted super PCB layout design and super heat sink, heat dissipation good, since with a cooling fan interface, can also do Tesla discharge, generator voltage inverter, etc..
In this test, the maximum power is close to 1600W, and the maximum current is 35A. This product is available at under the condition of good heat dissipation, the utility model can work continuously for hours.
Name: ZVS Induction Heating Board Module
Model: 854337
Product size: 180mm x 90mm x 80mm
Heater ring inner: 70mm (Recommended crucible + quartz suit, maximum support of 58mm crucible)
Input voltage: 12V-48V recommend: 36V above
Power requirements: less than 12Vgreater than equal 10A , 15V above greater than equal 15A
Maximum power: 1800W
Maximum current: 40A
colour: black
Material: plastic + metal
Package Included
1 x PCB board
1 x 48V copper tube
Only the above package content, other products are not included.
Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
high frequency induction welding machine IGBT frequency induction smelting equipment (25KW)
- Rated Power output:25KVA;Frequency rang:30~80KHz;3 phase input:380V/50Hz
- Germany SIEMENS INFINEON IGBT Module; Japan Nichicon electrolytic capacitor(filter capacitor);signal circuit, drive circuit board ,control circuit board and components are adopted:Toshiba, Hitachi,Motorola,China’s top manufacturers ;international advanced all-solid-state semiconductor power devices;imported transistor integrated block ;high speed control tube
- with perfect control,protection,alarm display circuit,machine could get full automatic tracking frequency, continuous adjustable power,safe and dependable protection,clear and accur data display and etc technical advantage
- according to the frequency and power,we offer various model of different types and design.Superiority :fast heating,wide application,portable volume,easy installation,simple operation
- Wide applied to different kind of work piece melting,annealing,welding,quenching,forging,hardening and other heat treatment.
Model:KX-5188A25
Rated Power output:25KVA
Frequency rang:30~80KHz
3 phase input:380V/50Hz
Voltage range:360V~420V
Current input:45A
Efficiency:95%
Duty cycle:100%
Dimension of power unit(mm 3):670×280×500
Weight of power unit:33Kg
Cooling water flow:0.2MPa ,5L/Min
Cooling water temperature:<>
Application:Quenching, annealing, conditioning saw blades, drill, turning welding standard parts of axial etc fastener local heating, forging, melting, high frequency induction heating equipment
Conclusion
By our suggestions above, we hope that you can found high frequency induction heating equipment for you.Please don’t forget to share your experience by comment in this post. Thank you!
